CONDUCTOR'S SPECIAL 844 NIGHTMARE EDITION TRAIN HORN KIT
- In stock, ready to ship
- Inventory on the way
DESCRIPTION
AIR ALL YOU WANT. YOU'LL MAKE MORE.
The Conductor's Special 844 Train Horn Kit offers superior performance and reliability. With 8 gallons of onboard air, powered by dual constant-duty compressors, you'll never have to worry about running out of air for your horns, tires, airbags, and power tools.

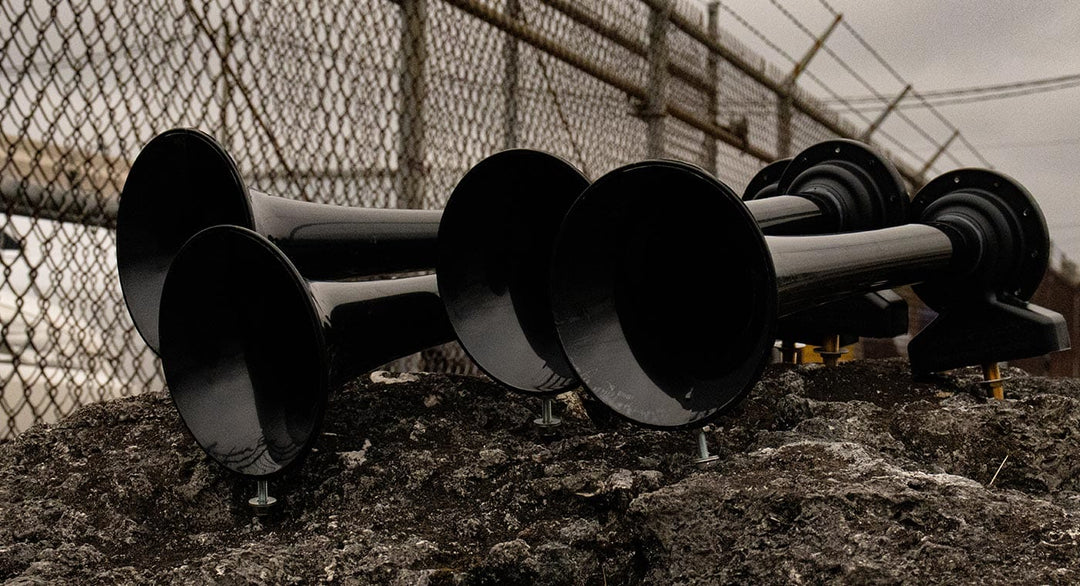

The kit features our renowned Shocker XL Train Horns, which are hand-tuned to the US Train Horn Chord for a true locomotive sound. The 8-gallon 8 port tank provides a continuous blast time of up to 20 seconds, and the system can refill in just 2 minutes and 30 seconds. This comprehensive kit ensures that you always have the air you need for any situation.
- The loudest horns we manufacture, be heard for miles!
- Stainless steel internals combined with the fiberglass-reinforced ABS construction - extremely durable through all conditions!
- Individually mounted horns for flexible installation
- All-inclusive train horn kit with everything needed for installation
- 150 PSI 8-gallon air system provides up to 20 seconds of honk time
- Capable of filling tires and using small air tools
VIDEOS
The video in the link below shows our Shocker horns in a third-party decibel test alongside your typical "air horn" honked side-by-side at the same pressure. As you can see, no one even comes close to the insane volume and tone of our Shocker XL Horns!

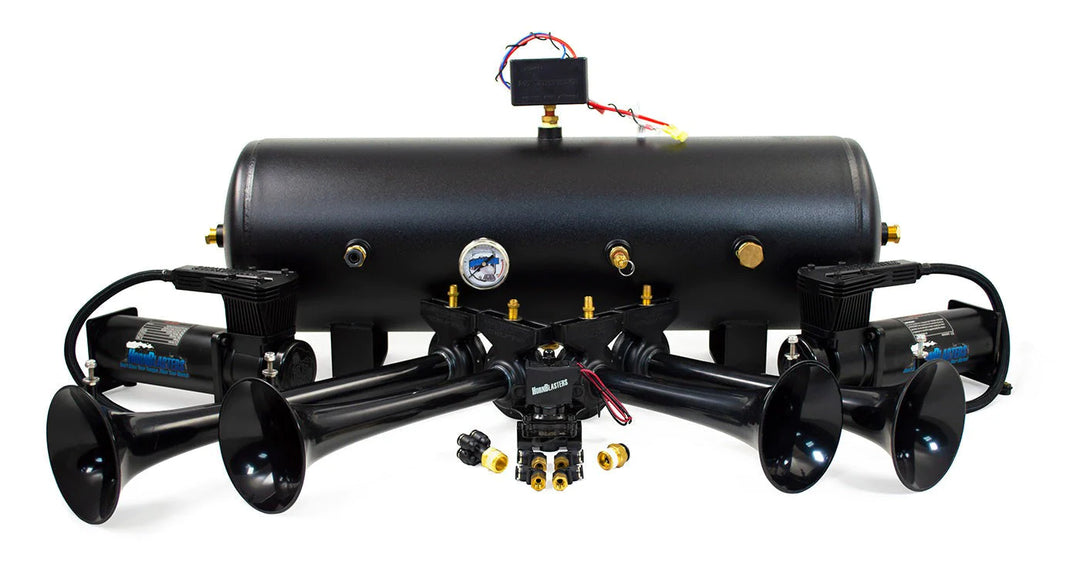

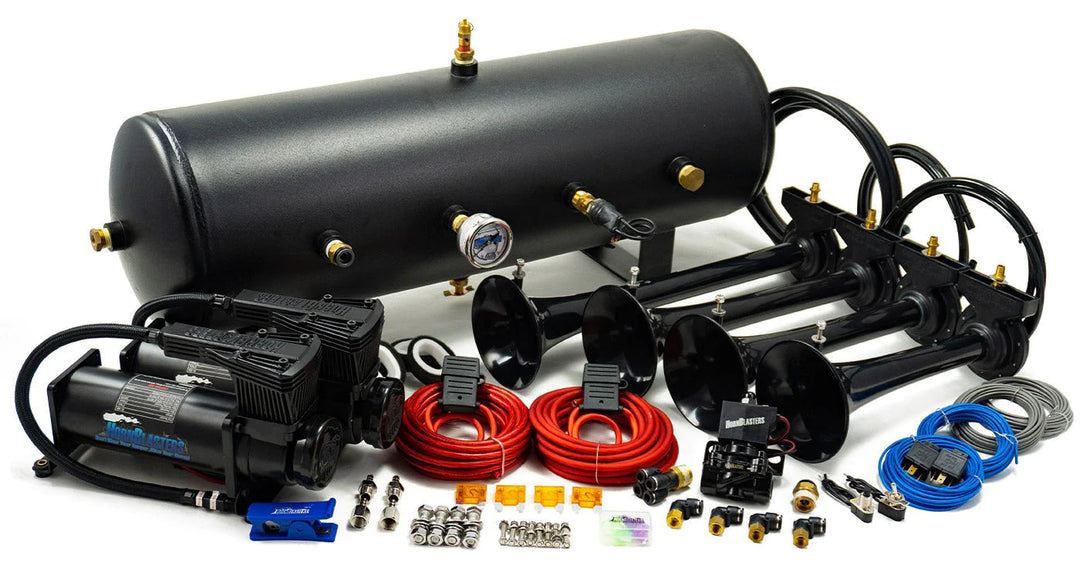

INCLUDES

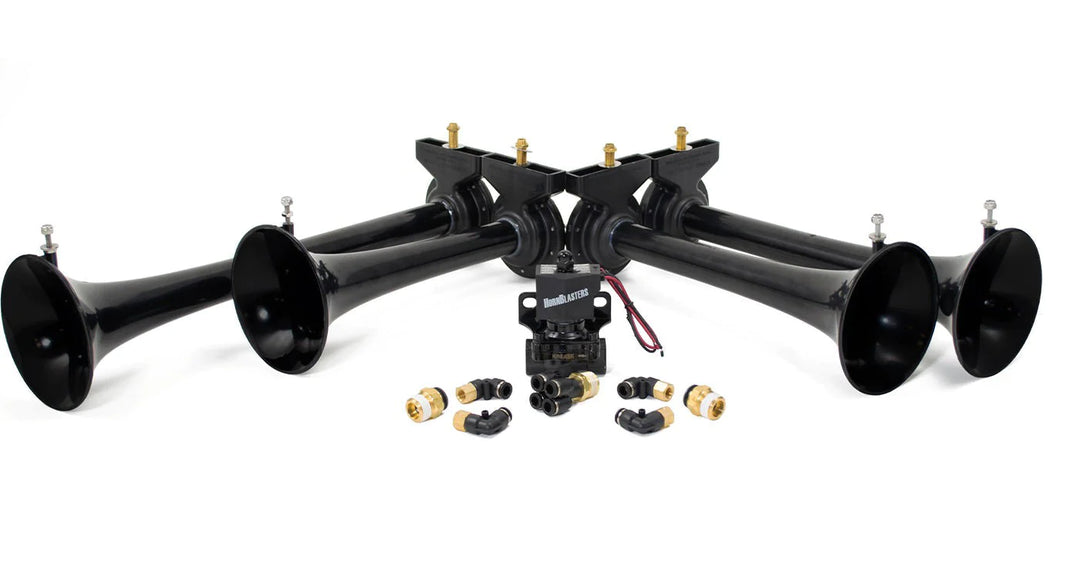

- SHOCKER XL TRAIN HORNS
- 8-GALLON 8 PORT STEEL AIR TANK
- DUAL 1NM STEALTH BLACK AIR COMPRESSORS
- 110/150 PSI PRESSURE SWITCH W/ 40 AMP RELAY
- REMOTE MOUNTABLE INTAKE FILTER
- SPARE AIR FILTER ELEMENTS
- 10 FT OF 5/16 IN D.O.T. APPROVED AIR LINE
- 17 FT OF 1/2 IN D.O.T. APPROVED AIR LINE
- 6FT OF 3/8" AIR LINE (FOR AIR COMPRESSORS AIR INTAKE)
- 22FT OF 10-GAUGE RED WIRE
- 22FT OF 18-GAUGE BLUE WIRE
- 22FT OF 18-GAUGE GREY WIRE
- COMPLETE WIRING KIT WITH FUSE HOLDER & FUSES
- BRASS NPT FITTINGS KIT INCLUDING A SAFETY BLOWOFF & DRAIN COCK
- MOUNTING HARDWARE
- DETAILED INSTRUCTIONS
- AIR LINE CUTTER
- EARPLUGS
SPECIFICATIONS
-
Part Number: HK-S4-844K
- Operating Pressure: 150 PSI
- Restart Pressure: 110 PSI
- Voltage: 12-Volt DC
- Horn: Shocker XL train horn
- Horn Material: High-impact fiberglass reinforced ABS
- Horn Measurements
-
№ 1 19.50″ (495.30 mm) № 2 16.25″ (412.75 mm) № 3 14.75″ (374.65 mm) № 4 12.75″ (323.85 mm) - Horn Flare: 6.5″ (165.1 mm)
- Air Tank: HornAir 8-gallon 8 port air tank
- Tank Length: 32.5″ (825.5 mm)
- Tank Diameter: 10.5″ (266.7 mm)
- Tank Height: 12.5″ (317.5 mm) (With Legs)
- Tank Weight: 32 lb (14.51 Kg)
- Max amperage: 25 Amps
- Maximum duty cycle: 100% @ 100 PSI / 50% @ 200 PSI
- Flow Rate @ 0 PSI: 1.75 CFM
- Maximum working pressure: 200 PSI
- Compressor length: 10.75″ (273.05 mm)
- Compressor width: 4″ (101.6 mm)
- Compressor height: 6.75″ (171.45 mm)
