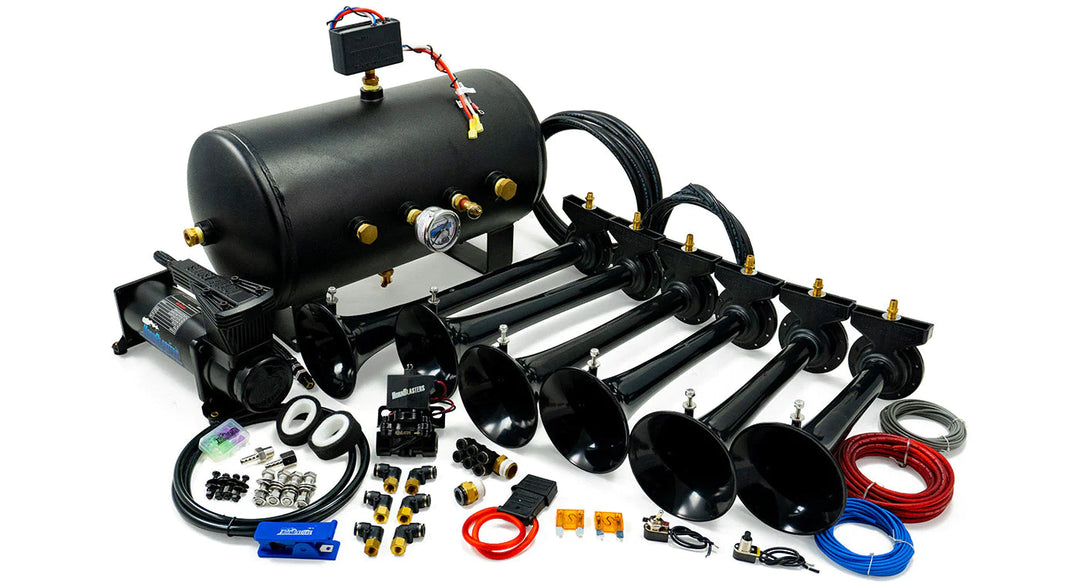

SHOCKER S6 544K NIGHTMARE EDITION TRAIN HORN KIT

Our new HornBlasters Shocker S6 544K nightmare edition train horn kit gives you more of what you want in a train horn kit. More air, more performance, and (more importantly) more volume!

Featuring six of our legendary Shocker XL train horn bells, you get the full force and power of an authentic train horn and then some. The extra #2 and #3 bell included in this kit boost the volume and make it the loudest train horn kit we produce. On top of that, you get one of our most powerful onboard air systems that not only powers these ridiculously loud horns, but can also be used for tire inflation, air tools, air suspension, and more!

• Extremely durable & loud!
• Industrial grade stainless steel diaphragms
• Extra-large 5-gallon air tank
• Capable of Filling Tires
• Everything needed for installation included

• Max honk time: 8-10 seconds

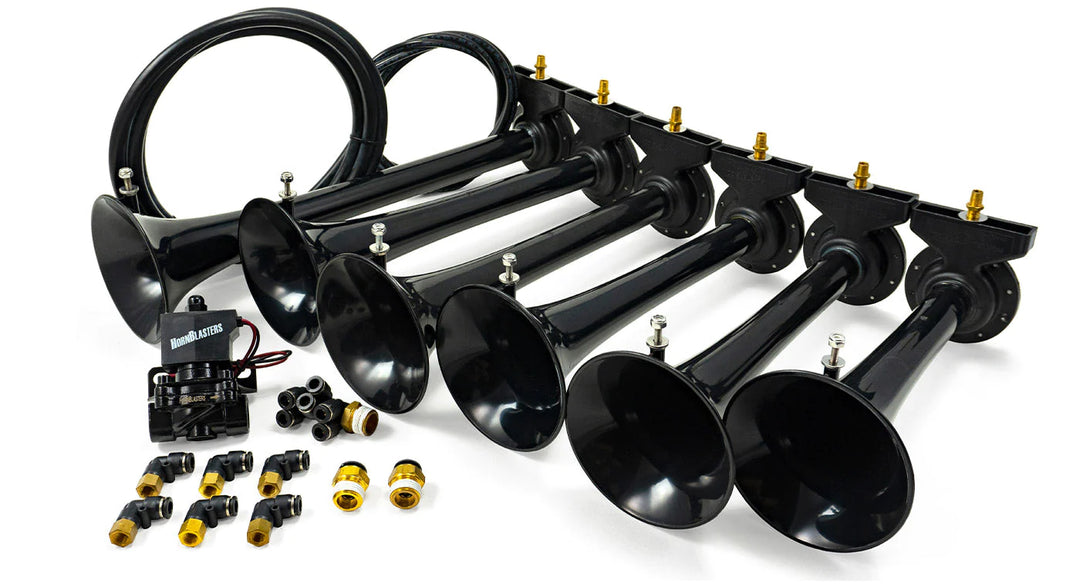

• SHOCKER S6 TRAIN HORNS
• BLACK WIDOW 1/2" NPT STAINLESS STEEL ELECTRIC AIR VALVE
• 5-GALLON 8 PORT AIR TANK

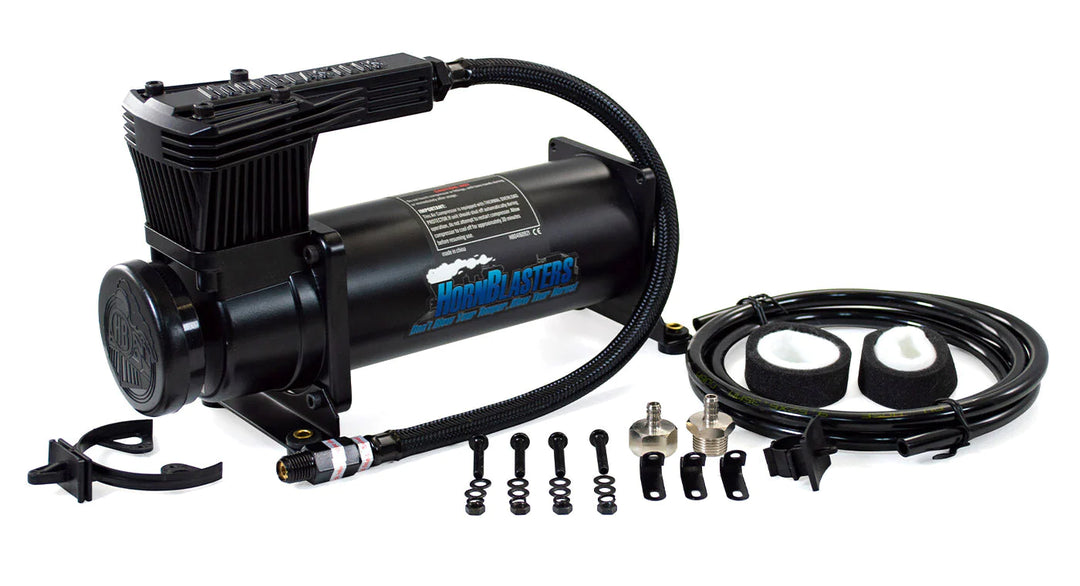

• HORNBLASTERS 1NM AIR COMPRESSOR
• 110/150 PSI PRESSURE SWITCH W/ BUILT-IN 40 AMP RELAY

• HORNBLASTERS 200 PSI STAINLESS STEEL LIQUID-FILLED AIR GAUGE
• REMOTE MOUNTABLE INTAKE FILTER
• SPARE AIR FILTER ELEMENTS
• 10FT OF 5/16" D.O.T. APPROVED AIR LINE
• 17FT OF 1/2" D.O.T. APPROVED AIR LINE
• 6FT OF 3/8" AIR LINE (FOR AIR COMPRESSORS AIR INTAKE)
• 22FT OF 10-GAUGE RED WIRE

• 22FT OF 18-GAUGE BLUE WIRE
• 22FT OF 18-GAUGE GREY WIRE

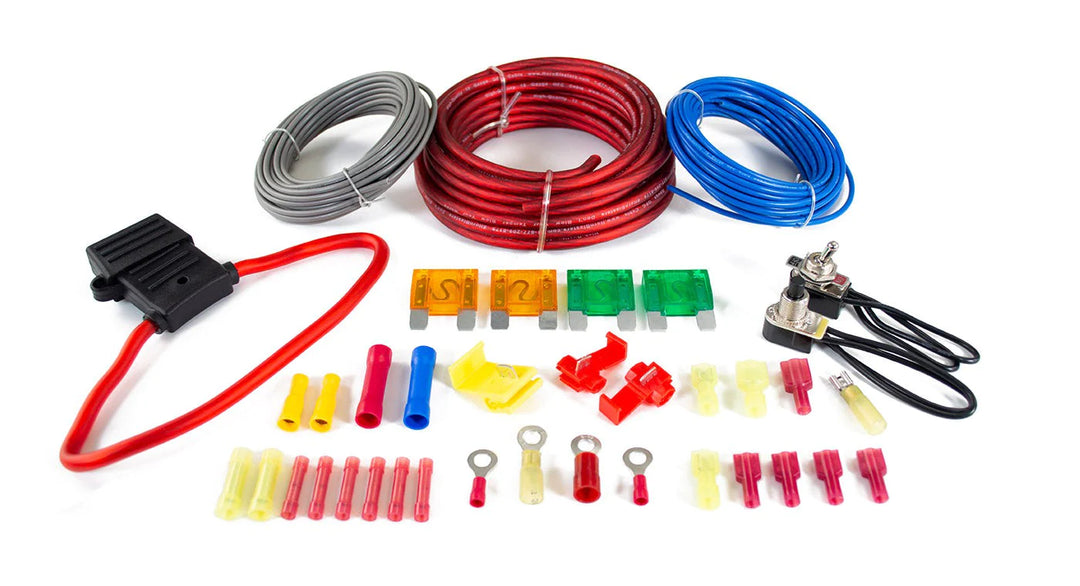

• COMPLETE WIRING KIT WITH FUSE HOLDER & FUSES
• BRASS NPT FITTING KIT WITH A SAFETY BLOW-OFF & DRAIN COCK
• MOUNTING HARDWARE
• AIR LINE CUTTER
• DETAILED INSTRUCTIONS
• EARPLUGS

• Part Number: HK-S6-544K

• Operating Pressure: 150 PSI
• Restart Pressure: 110 PSI
• Voltage: 12-Volt DC
• Horn: Shocker S6 train horn
• Horn Material: High-impact fiberglass reinforced ABS
• Horn Measurements

• № 1 19.50″ (495.30 mm)	№ 2 16.25″ (412.75 mm)
  № 3 16.25″ (412.75 mm)	№ 4 14.75″ (374.65 mm)
  № 5 14.75″ (374.65 mm)	№ 6 12.75″ (323.85 mm)

• Horn Flare: 5″ (127 mm)
• Air Tank: HornAir 5-gallon 8 port air tank
• Tank Length: 20.5″ (520.7 mm)
• Tank Diameter: 9.5″ (241.3 mm)
• Tank Height: 11.5″ (292.1 mm) (With Legs)
• Tank Weight: 20 lb (9.07 Kg)
• Tank Ports: x7 1/2" NPT, x1 3/4" NPT
• Max amperage: 25 Amps
• Maximum duty cycle: 100% @ 100 PSI / 50% @ 200 PSI
• Flow Rate @ 0 PSI: 1.75 CFM
• Compressor length: 10.75″ (273.05 mm)
• Compressor width: 4″ (101.6 mm)
• Compressor height: 6.75″ (171.45 mm)

• HornBlasters Conductor's Special 544 instruction manual
• HornBlasters Conductor's Special 544 compressor wiring diagram
