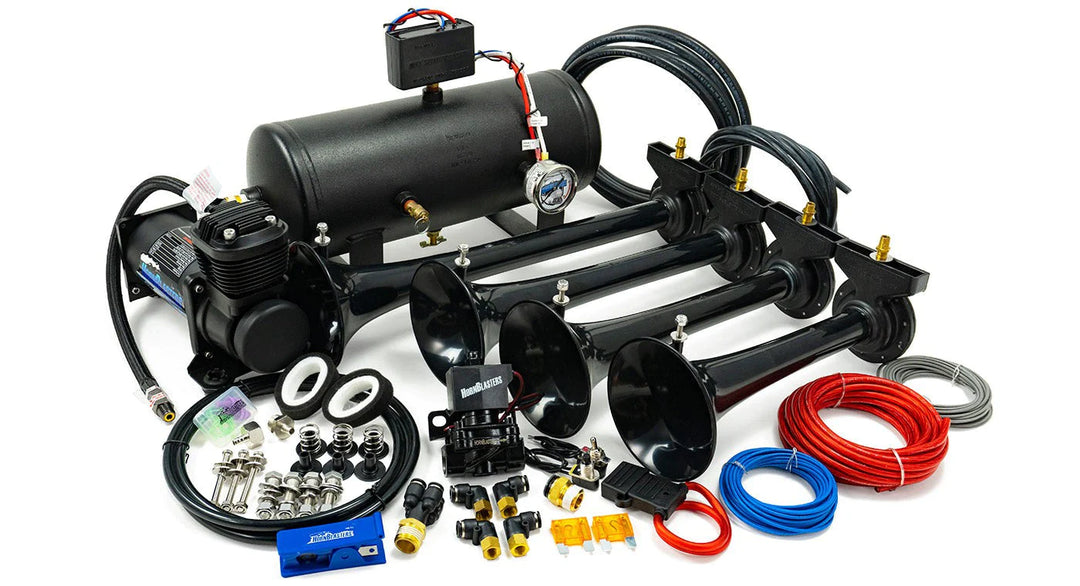

CONDUCTOR'S SPECIAL 232 TRAIN HORN KIT

A GIFT FROM THE CONDUCTOR TO YOU

Get the intensity and tone of a real locomotive with our Conductor’s Special 232 train horn kit. Compact and budget-friendly, this kit is perfect for tight install spaces and has been installed on everything from UTVs to big rigs. The kit includes our Shocker XL train horns, known for their loudness and authentic train horn sound. Everything is included and detailed instructions make installation easy for anyone.

Don't sacrifice performance for budget, get your hands on our Conductor's Special 232 train horn kit today

• The loudest horns we manufacture, be heard for miles!
• Stainless steel internals combined with the fiberglass-reinforced ABS construction ensures these horns are extremely durable through all conditions!
• Individually mounted horns for flexible installation
• All-inclusive train horn kit with everything needed for installation
• 150 PSI 2-gallon air system provides 3-5 seconds of honk time
• Capable of filling tires and using small air tools

Please note: The 6 horn upgrade kit does NOT include the extension brackets to connect to our STDK bracket or Shocker XL horn mount.

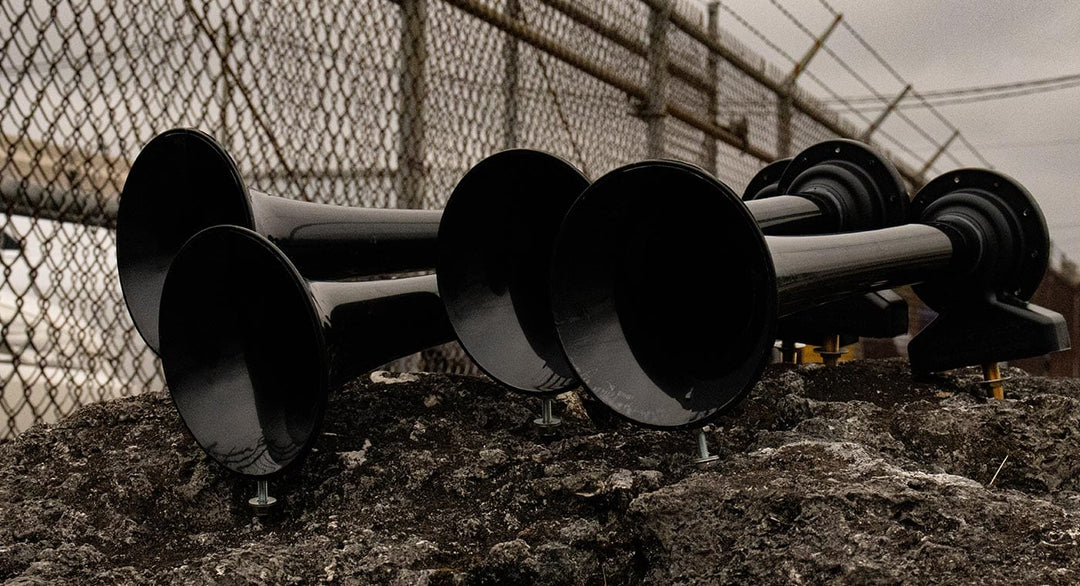

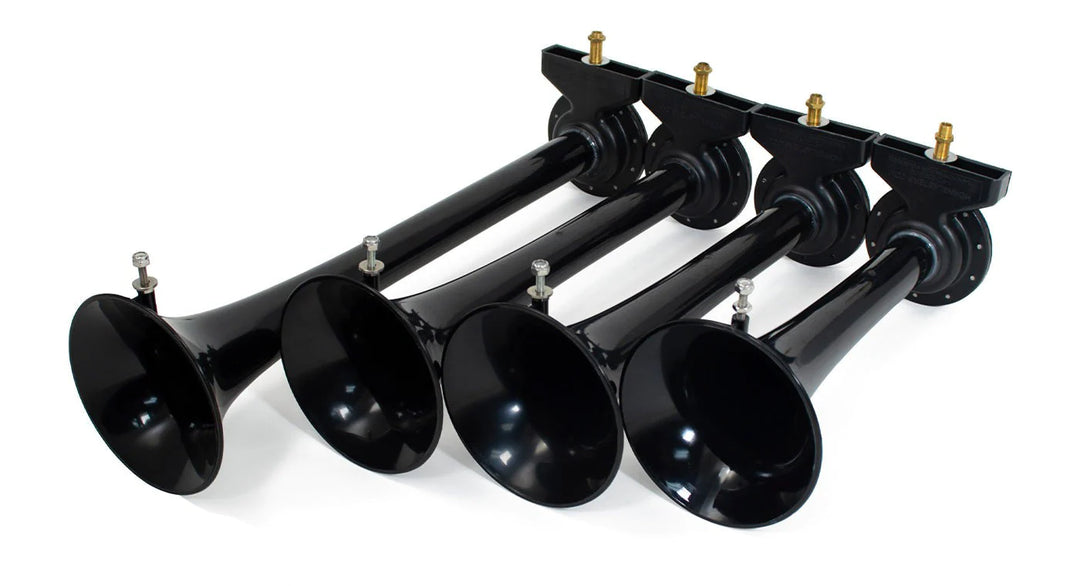

• SHOCKER XL TRAIN HORN
• 2-GALLON 6 PORT AIR TANK

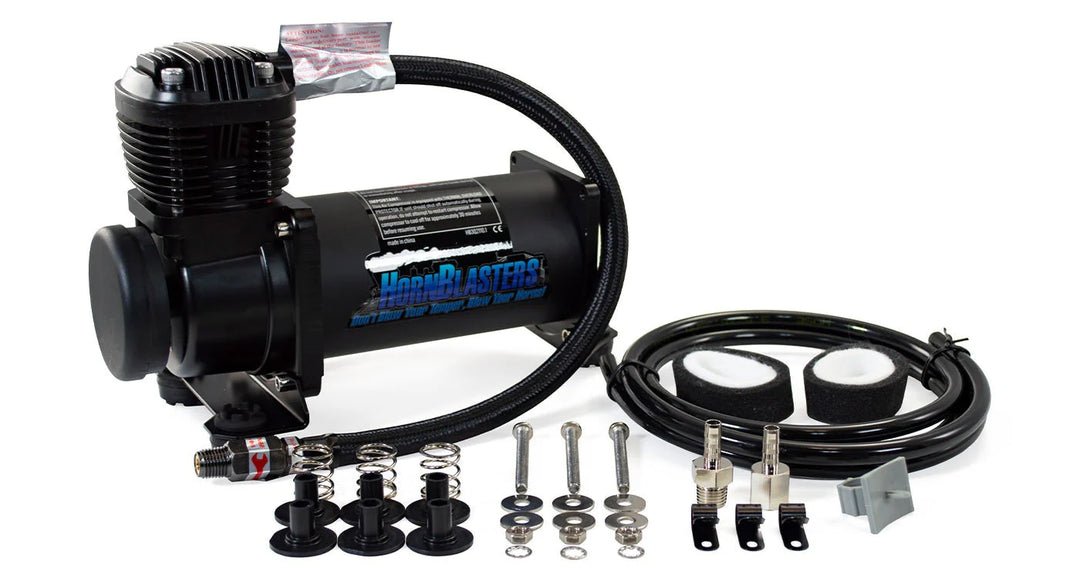

• HORNBLASTERS 3Q AIR COMPRESSOR

• 110/150 PSI PRESSURE SWITCH W/ 40 AMP RELAY
• REMOTE MOUNTABLE INTAKE FILTER ASSEMBLY
• SPARE AIR FILTER ELEMENTS
• 10 FT OF 5/16" D.O.T. APPROVED AIR LINE
• 17 FT OF 1/2" D.O.T. APPROVED AIR LINE
• 6FT OF 3/8" AIR LINE (FOR AIR COMPRESSORS AIR INTAKE)
• 22FT OF 10-GAUGE RED WIRE
• 22FT OF 18-GAUGE BLUE WIRE
• 22FT OF 18-GAUGE GREY WIRE
• 1/2" NPT BLACK WIDOW STAINLESS STEEL ELECTRIC AIR VALVE
• HORNBLASTERS 200 PSI STAINLESS STEEL LIQUID-FILLED AIR GAUGE
• BRASS NPT FITTINGS KIT INCLUDING SAFETY VALVE AND BLOW-OFF

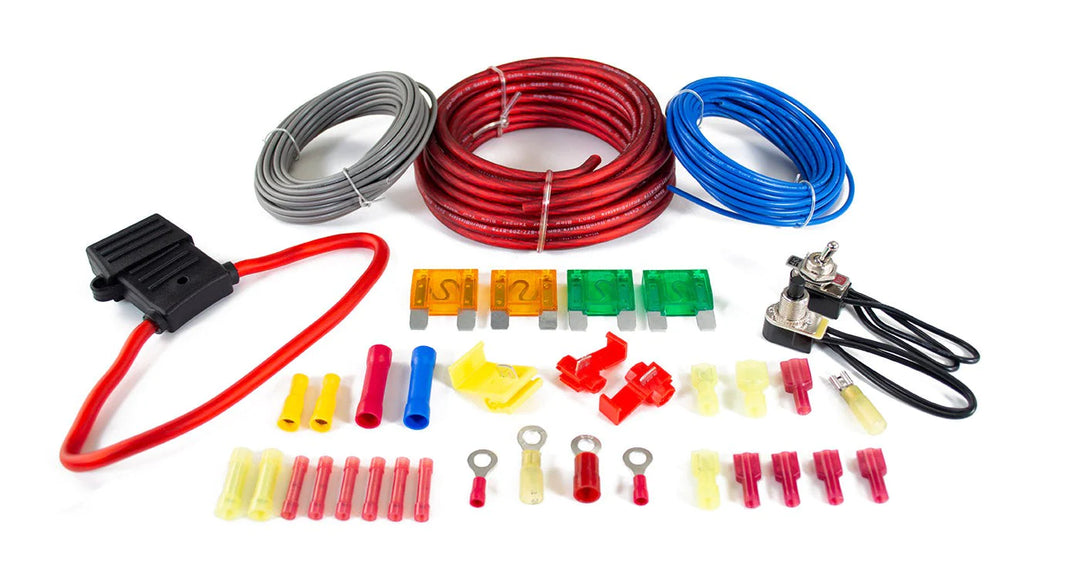

• COMPLETE WIRING KIT WITH FUSE HOLDER & FUSES

• MOUNTING HARDWARE
• AIR LINE CUTTER
• EARPLUGS
• DETAILED INSTRUCTIONS

• Part Number: HK-S4-232
• Operating Pressure: 150 PSI
• Restart Pressure: 110 PSI
• Voltage: 12-Volt DC
• Horn: Shocker XL train horn
• Horn Material: High-impact fiberglass reinforced ABS
• Horn Measurements

  № 1 19.50″ (495.30 mm)	№ 2 16.25″ (412.75 mm)
  № 3 14.75″ (374.65 mm)	№ 4 12.75″ (323.85 mm)

• Horn Flare: 5″ (127 mm)
• Air Tank: HornAir 2-gallon 6 port air tank
• Tank Length: 17" (431.8 mm)
• Tank Diameter: 6" (152.4 mm)
• Tank Height: 8″ (203.2 mm)(With Legs)
• Tank Weight: 10 lb (4.54 Kg)
• Air Compressor: HornBlasters 3Q air compressor
• Max Tank Size: 5-Gallons (18.93 Liters)
• Max amperage: 20 Amps
• Maximum duty cycle: 100% @ 100 PSI
• Flow Rate @ 0 PSI: 1.41 CFM
• Compressor length: 10.1″ (256.54 mm)
• Compressor width: 4.5″ (114.3 mm)
• Compressor height: 7″ (177.8 mm)
• Weight: 12.1 lb (5.48 Kg)

• HornBlasters Conductor's Special 232 instruction manual
