ADMIRAL 544K TRAIN HORN KIT

ANCHORS AWEIGH

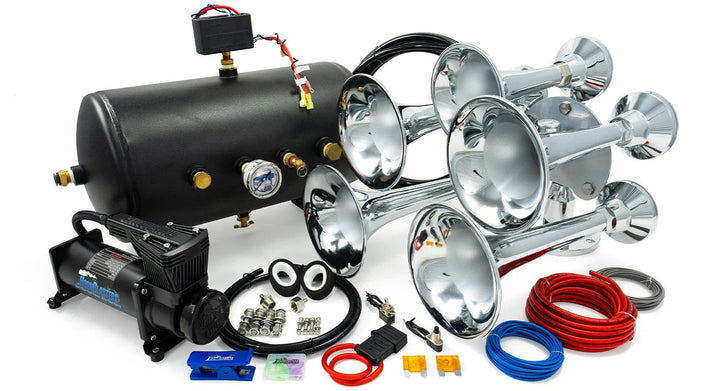

Make your presence known with the Admiral 544K train horn kit! With its impressive loudness, long blast time, and quick recharge rate, this kit is the perfect choice for anyone looking to make a statement on the road. The weather-resistant design ensures that this train horn can handle any condition you encounter on the highway.

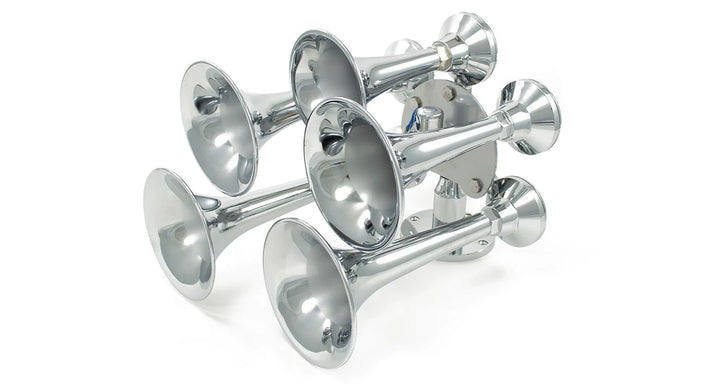

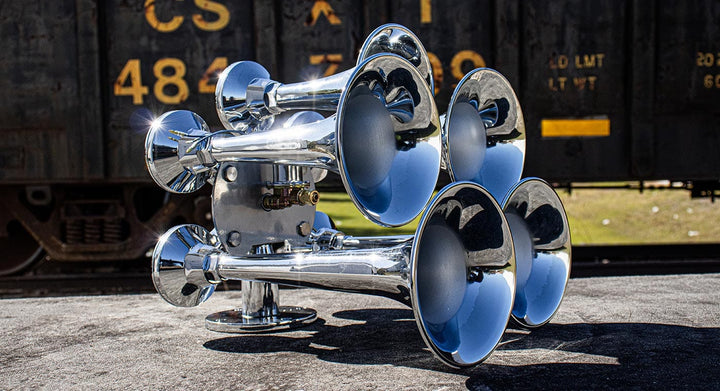

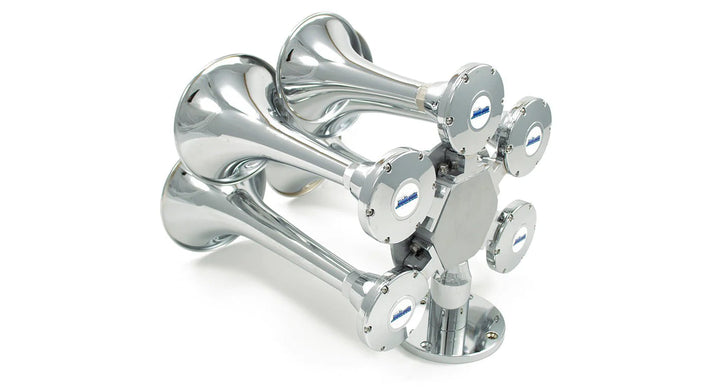

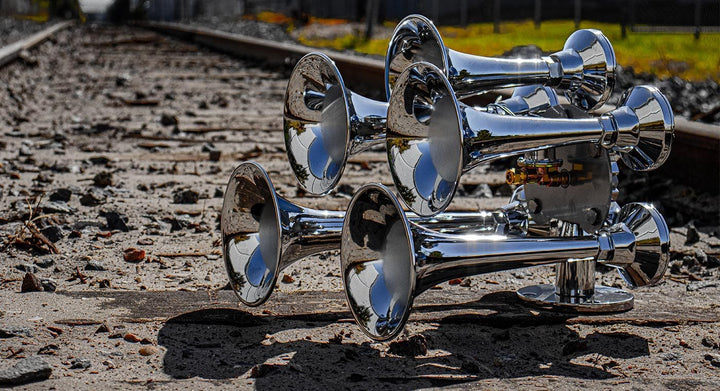

The eye-catching chrome 5-chime Admiral train horn is not just a looker, but a true performer. Made from solid brass and covered in a shiny chrome finish, it's sure to turn heads before it even makes a sound. And once it does make a sound, you can be sure it will be heard from miles away thanks to the HornAir 544K onboard air system. This system provides up to 10 seconds of continuous blast time, as well as support for other onboard air needs like tire inflation and small air tool use. Get the power and performance you need with the Admiral 544K train horn kit.

• Heavy-duty chrome finish

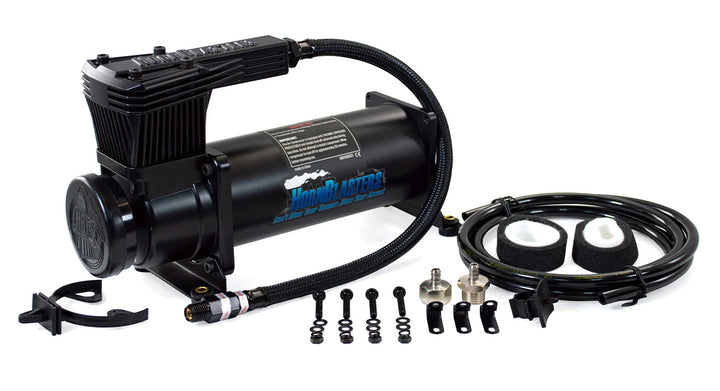

• Heavy-duty HB-1NM air compressor for faster fills & moderate pneumatic use!
• Stainless steel liquid-filled air pressure gauge
• Extra-large 5-gallon air tank
• Max honk time: 10 seconds

• ADMIRAL TRAIN HORN
• 5-GALLON 8 PORT AIR TANK
• HORNBLASTERS HB-1NM AIR COMPRESSOR

• 110/150 PSI PRESSURE SWITCH W/ 40 AMP RELAY

• 17FT OF 1/2" AIR LINE
• REMOTE MOUNTABLE AIR FILTER HOUSING
• SPARE AIR FILTER ELEMENTS
• BRASS NPT FITTING KIT WITH A SAFETY BLOW-OFF & DRAIN COCK
• HORNBLASTERS 200 PSI STAINLESS STEEL FIQUID-FILLED AIR GAUGE
• 22FT OF 10-GAUGE RED WIRE
• 22FT OF 18-GAUGE BLUE WIRE
• 22FT OF 18-GAUGE GREY WIRE

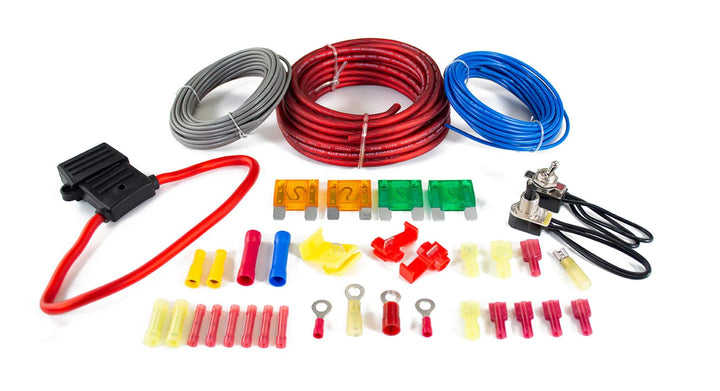

• COMPLETE WIRING KIT WITH FUSE HOLDER & FUSES

• AIR LINE CUTTER
• EARPLUGS
• MOUNTING HARDWARE
• INSTALLATION INSTRUCTIONS

• Part Number: HK-C5-544K
• Operating Pressure: 150 PSI
• Restart Pressure: 110 PSI
• Voltage: 12-Volt DC
• Horn: Admiral train horn
• Horn Air Inlet: 1/2" air line
• Horn Length: 17" (431.8 mm)
• Horn Width: 16" (406.4 mm)
• Horn Height: 15.5" (393.7 mm)
• Horn Weight: 19.8 lb (8.98 Kg)
• Air Tank: HornAir 5-gallon 8 port air tank
• Tank Length: 20.5″ (520.7 mm)
• Tank Diameter: 9.5″ (241.3 mm)
• Tank Height: 11.5″ (292.1 mm) (With Legs)
• Tank Weight: 20 lb (9.07 Kg)
• Tank Ports: x7 1/2" NPT, x1 3/4" NPT
• Average Fill Time: 1 Min 30 Sec
• Max amperage: 25 Amps
• Maximum duty cycle: 100% @ 100 PSI
• Flow Rate @ 0 PSI: 1.75 CFM
• Compressor length: 10.75″ (273.05 mm)
• Compressor width: 4″ (101.6 mm)
• Compressor height: 6.75″ (171.45 mm)
